Ferrule GasketIDF, ISO2852 Compliant

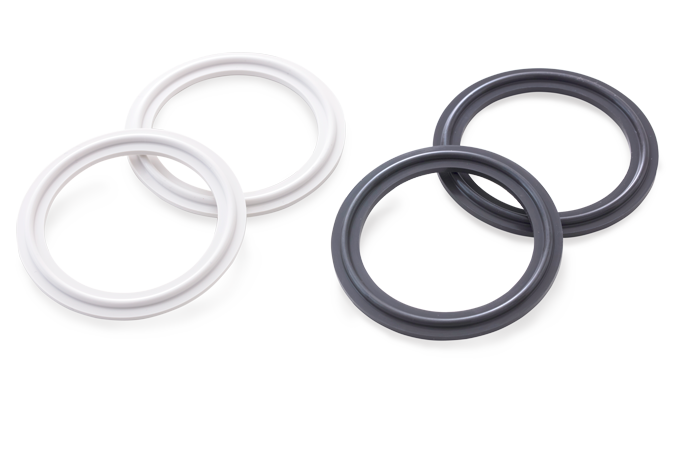

We offer the following ferrule gaskets as sealing materials for piping joints used in food and pharmaceutical plants.
Sealing Business
Features
The listed materials comply with the Food Sanitation Law No. 595 of the Ministry of Health, Labor and Welfare.
We can also prepare special materials for use with special cleaning solutions. Please do not hesitate to ask.
| Material | Hardness | Color | Material No. |
|---|---|---|---|
| Silicone rubber | 80 degrees | White | Q8-995 |
| Fluororubber | 80 degrees | Black | XF0629 |
| EPDM | 80 degrees | Black | E8-605 |
| NBR | 80 degrees | Black | N8-705 |
| FFKM（Perfluor） | 75 degrees | Black | PB-70 |
| PTFE（resin） | - | White | PTFE |

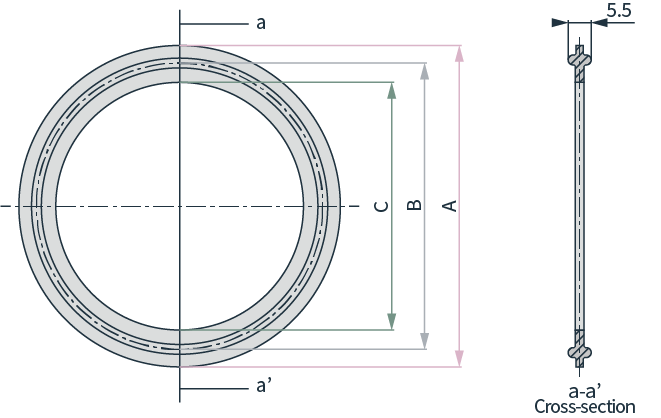

Sizes
Unit of size: mm
| Product No. | A | B | C |
|---|---|---|---|
| 1inch | 50.5 | 43.5 | 22.8 |
| 1.5inch | 50.5 | 43.5 | 35.8 |
| 2inch | 64.0 | 56.5 | 48.8 |
| 2.5inch | 77.5 | 70.5 | 60.5 |
| 3inch | 91.0 | 83.5 | 73.1 |
| 3.5inch | 106.0 | 97.0 | 85.1 |
| 4inch | 119.0 | 110.0 | 97.8 |
| 4.5inch | 130.0 | 122.0 | 110.5 |
